Project name: Square billets induction heating furnace for Suqian Nisco

    The owner: Suqian Jinxin Steel Rolling Co., Ltd of Nisco

    Project type: EPC

    Project capacity: 28000t/y

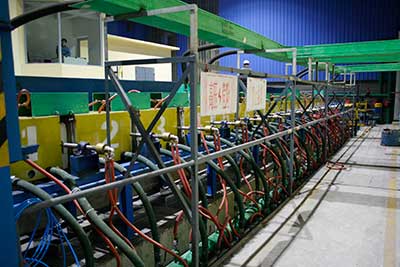

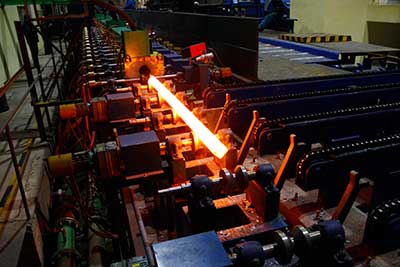

    Main contents: 1 set of 75mm square billet induction heating furnace and its supporting equipment. It is used for the production of high quality steel for military, and the product specification is 75mm x 75mm, 60mm x 60mm. Square billet length 2m-3.5m

    Technical parameters: transformer capacity: 2500kVA, the length of the production line: 21m.

    Economic index: production rate: 4t/h, heating temperature: from the environment temperature to 1200℃, power consumption: ≤380kwh/t, billet oxidation rate: ≤0.5%, heating time: ≤300s

    Project advantages: Independent R&D design, new digital series power supply, new sensor structure. Low energy consumption, low oxidation loss rate of products, and high rolling quality, compared with traditional gas furnace. Convenient start and pause design, flexible production organization. No protective treatment and additional phosphorus removal device is required for the billet surface.
