Project name: Own project of Northwest Zirconium tube CO., LTD

    Client: Branch Of Northwest Zirconium tube CO., LTD In Nantong.

    Project type: EPC

    Project capacity: 10t/y

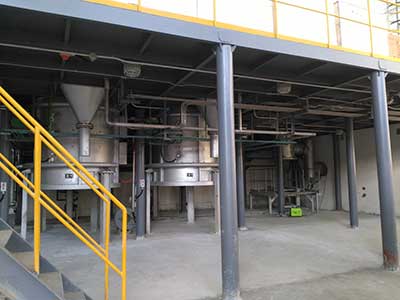

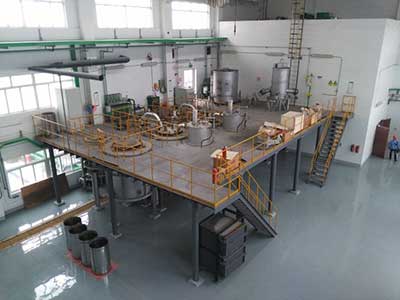

    Main contents: the equipment is mainly composed of reduction furnace, sublimation furnace and distillation furnace. It is mainly used in the reduction and distillation process of X material production process. The main function of the reduction sublimation furnace is to provide necessary heat for the X material reaction required for the reduction reaction, so that the reduction reaction can continue to generate the mixed products of the primary X material, and then the impurities in the X material can be removed by the distillation furnace at high temperature to obtain the X material with higher purity. The equipment mainly includes heating furnace and corresponding electrical control system.

    Economic index: reducing and sublimation time is 75h, cooling time is 25h, power consumption is 5000kwh/t, distillation and heating time is 75h, cooling time is 25h, power consumption is 5000kwh/t.

    Highlight of this project: the first reducing and distillation treatment device of X material in the domestic.
